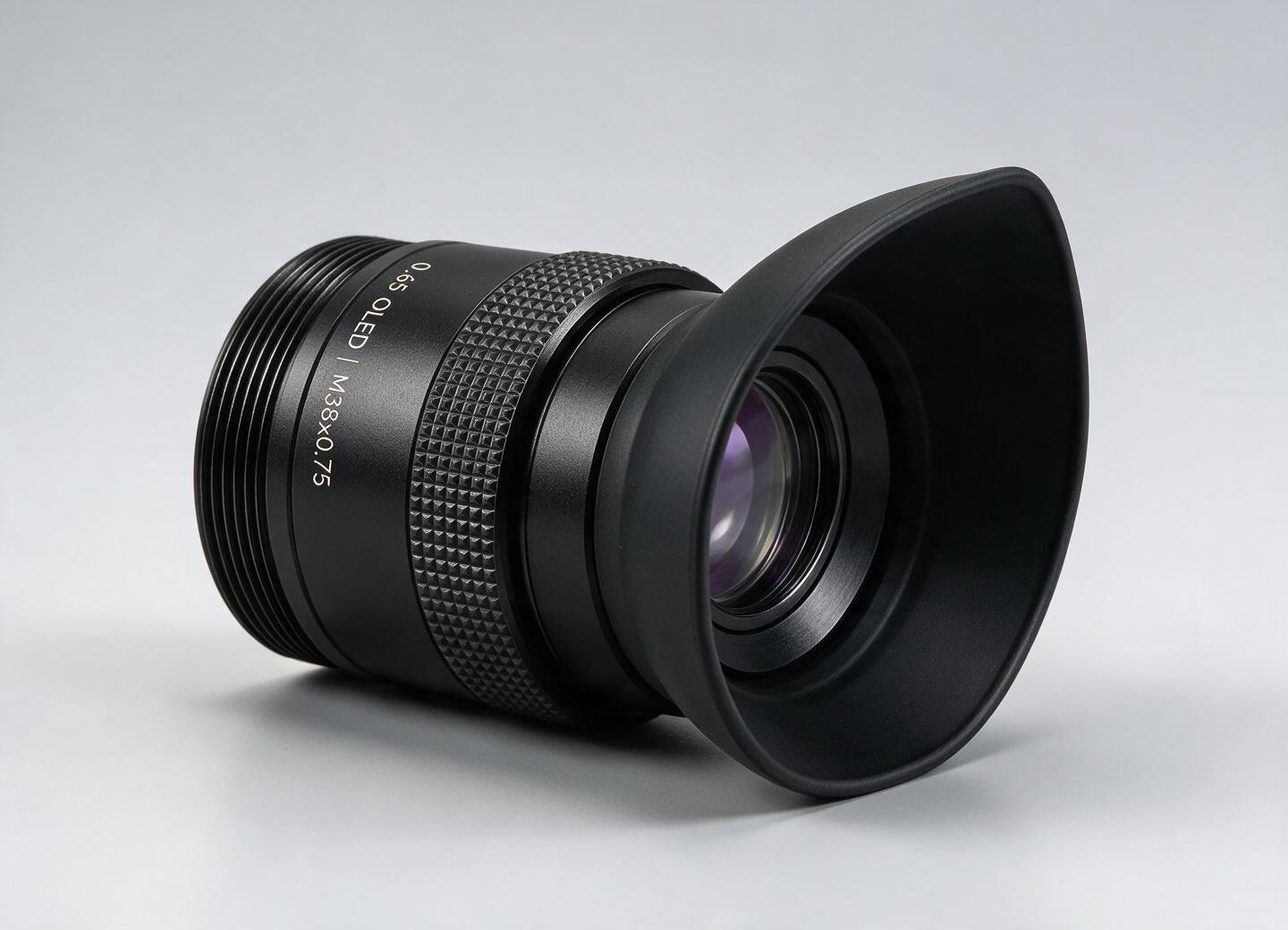

23 mm 10.8× Eyepiece for 0.65-inch OLED
Display eyepiece for a 0.65-inch OLED microdisplay, with 50 mm eye relief, a 6 mm exit pupil and a sealed M38 mount.
Full parameter record
23 mm 10.8× Eyepiece for 0.65-inch OLED – published specifications
Every value below is the reference record for this configuration. Values marked as a reference, a target or a minimum are confirmed against the display datasheet and the approved drawing before a quotation is issued.
| Parameter | Published value |
|---|---|
| Focal length | 23 mm ±3% |
| Magnification | 10.8× |
| Working wavelength | 480–650 nm |
| Display reference | 0.65-inch OLED |
| Field of view | 25.2° × 19.2° |
| Distortion | <2% |
| Eye relief | 50 mm |
| Exit pupil | Φ6 mm |
| Diopter range | −5 to +5 SD |
| Back focal length | 7.55 mm |
| Optical transmission | >95% |
| Weight | <145 g |
| Overall length | 83 ±3 mm |
| Maximum diameter | Φ47 mm |
| Interface | M38 × 0.75-6g |
| Focusing torque | 0.3 ±0.15 N·m |
| Environment | −40 to +60 °C; IP67; waterproof to 20 m for ≥2 h |
| Surface quality | MIL60-40, inspected under normal operating conditions |
| Compliance | RoHS 2.0 |
Reference policy: the signed quotation, approved drawing, sample and inspection plan define the delivered performance, coating, sealing, MOQ and lead time. Values published here are engineering references for screening, not a guaranteed specification.
Before this configuration is released
What to confirm with us
Send these five inputs and the quotation can be prepared against your system rather than against a catalogue headline.
01Display diagonal and pixel pitch of the microdisplay the eyepiece will serve
02Required magnification, eye relief and exit pupil diameter
03Diopter adjustment range and the mechanical interface to the display module
04Distortion and image-quality target across the full field of view
05Mass, sealing, shock and vibration limits, and the release documents required
